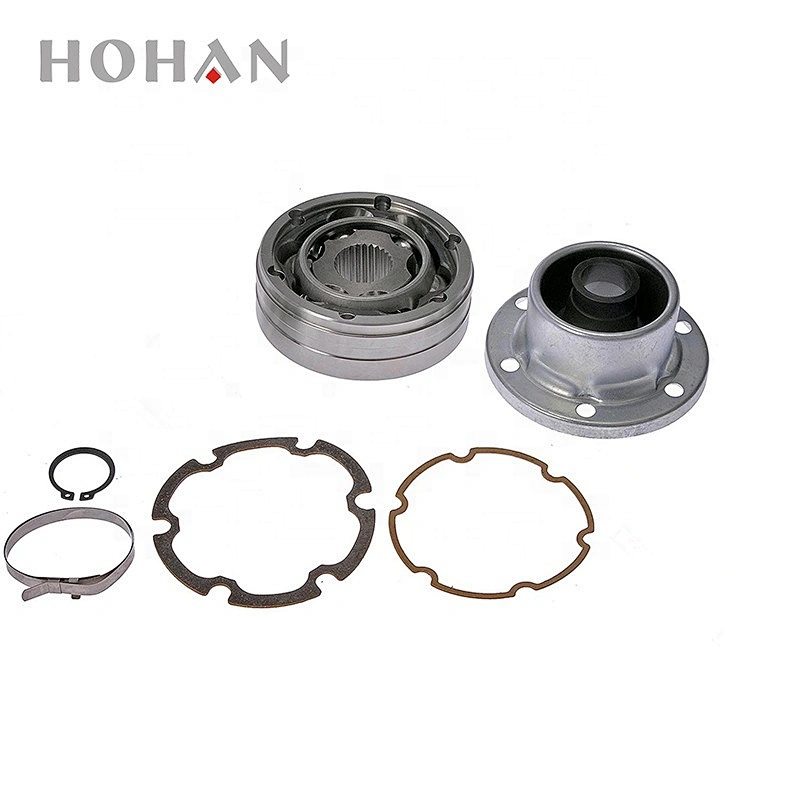

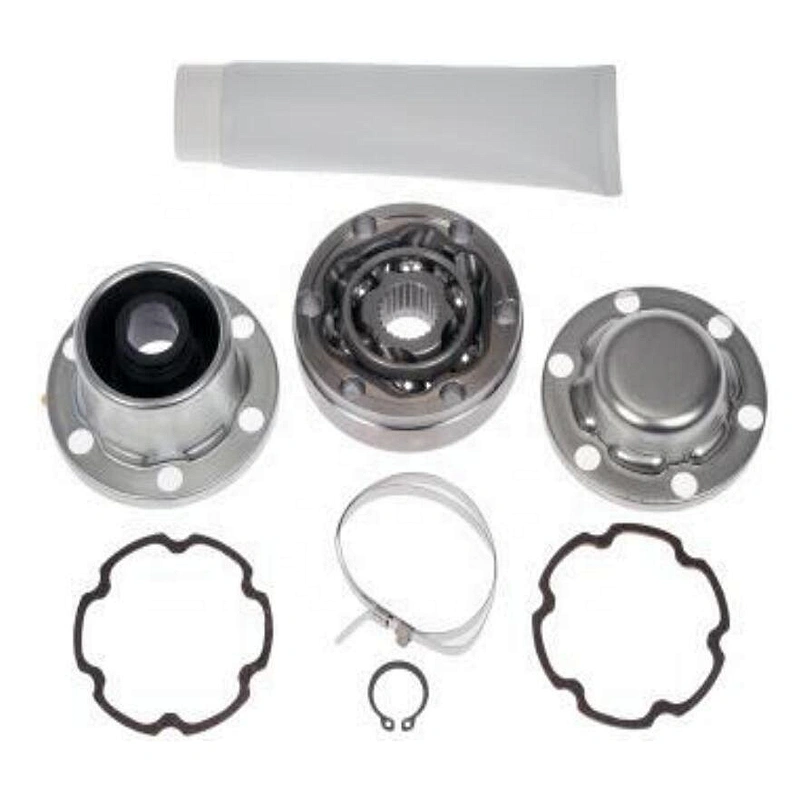

Large stock 31216175 of inner CV joint with kits for VOLVO V50 S40 S60 XC70 XC90 Dorman 932-501
Steel, 55# ,20CR ,GCR15
Auto Chassis Parts
More than 1300 different models
Heat treatment depth
Precision of installation
ALL VOLVO S40 S60 S70 XC70 XC90 AWD
MODEL VARIANTS AND ENGINE SIZES
INNER PROPSHAFT JOINT 78 MM WITH 24 SPLINES
1.We have 1000 different items of cv joint and complete range of kits. 2.Raw materials are all from China big material factories. It keeps good performance life of our products. 3. Imported production equipment guarantee more precise dimensions. 4.100% Inspection before shipment.
About All Joints
Fixed Ball (AC) Joint
The AC joint is suitable for passenger cars and light vehicles. Providing a maximum articulation angle of 47 degrees to meet the criteria for steering and suspension movement, it is the most popular choice for the wheelside of a constant velocity sideshaft
Fixed Ball (UF) Joint
Offering the same strength and durability as the AC joint, the UF fixed ball joint provides the maximum 50 degrees articulation angle, so affording greater latitude in the design of the steering geometry and facilitating smaller turning circles
Fixed Ball Joint – SIO plus Ballspline
The SIO joint for inboard use is based in the"opposed track"principle to provide high performance in smallest packaging with optimised joint efficiency. Together with the ballspline as plunging unit, it represents a premium solution for extreme plunge angle requirements and high installation angles, as for instance needed for SUV vehicles.
Tripod Plunging (GI) Joint
The standard tripod joint GI is suitable for the inboard gearbox joint of a constant velocity sideshaft for most vehicles. It has a maximum articulation angle of 23 degrees and has a plunge length of 50mm. It is ideal for medium working angles and its low plunge resistance aids good NVH characteristics
Tripod Plunging (AAR) Joint
In addition to the properties of the GI joint, the low plunging resistance and low axial forces of the AAR joint deliver additional NVH refinement, making it appropriate for high working angles. It has a maximum articulation angle of 26 degrees and 50mm plunge.
Ball Plunging (DO) Joint
The DO joint is similar to the VL. It is available in two versions with 50mm plunge for a maximum articulation of 26 degrees or 31 degrees. The DO joint is also suitable for high working angles on account of the low axial vibration.
Ball Plunging (VL) Joint
The VL ball plunging joint is a popular choice for the inboard joint of the rear-wheel drive CVJ sideshafts. With maximum 22 degrees articulation and a plunge of 50mm it is ideal for high working angles with low axial forces. The VL joint is also available as monobloc or disc version.
Common CV Joint Problems
For smooth running, a CV joint uses a special lubricant that is packed in and then sealed by plastic or rubber boot secured with a pair of clamps. As long as that boot is undamaged, the CV joint should last a long time without maintenance.
It is more likely that your car will rust through before the CV joint goes. However, a damaged or cracked protective boot opens up a whole world of pain as lubricant spills out and water infiltrates the joint.
This causes the CV joint to corrode and fail. Outer boots seem to be the more vulnerable ones, probably because they must withstand more motion than do the inner boots.
A properly trained and certified technician will inspect your CV boots for tears, cracks and other damage whenever you bring your vehicle in for scheduled care.
CV Boot and Clamps
Outer CV Joint
Hohan Auto Parts Co., Ltd. is a professional auto parts and accessories manufacturer, supplier and exporter. Hohan aims to provide worldwide customers with a wide range of best quality products with most competitive prices. In order to achieve this goal, Hohan has established strict quality control, inspection, best management and good supply system.To ensure the quality of our products, all our factories produce auto parts strictly to IS9001/TS16949 quality certification.
Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
1. OEM Manufacturing welcome: Product, Package... 2. Sample order 3. We will reply you for your inquiry in 24 hours. 4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Q1. What is your terms of packing? A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy? A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship? A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
