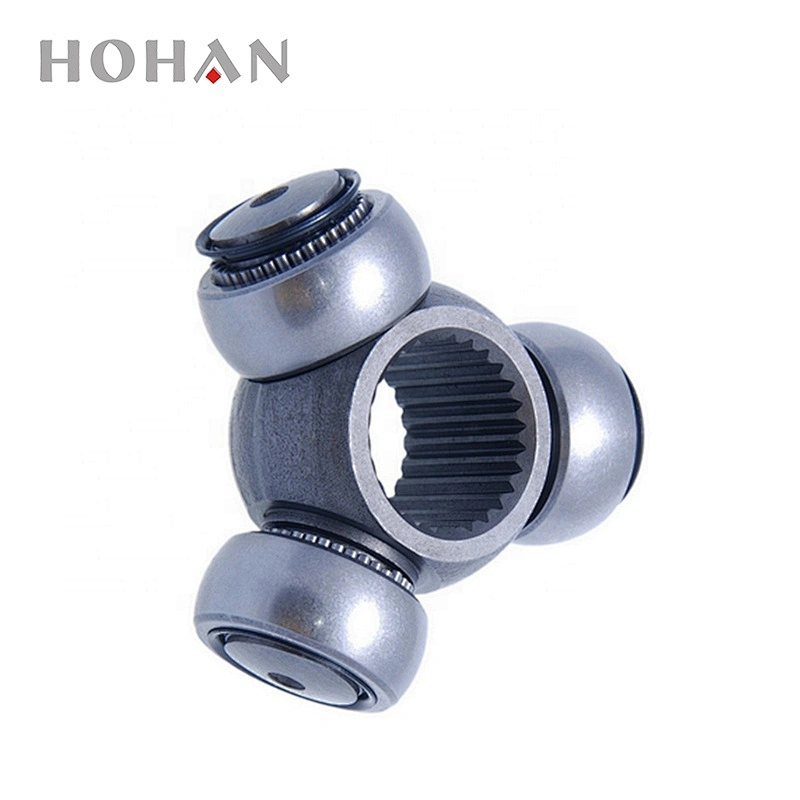

Professional Tripods Inner Driver Axle Tripod CV Joint For Saab
Professional Tripods Inner Driver Axle Tripod CV Joint For Saab
Professional Tripods Inner Driver Axle Tripod CV Joint For Saab
Professional Tripods Inner Driver Axle Tripod CV Joint For Saab
Professional Tripods Inner Driver Axle Tripod CV Joint For Saab
Professional Tripods Inner Driver Axle Tripod CV Joint For Saab
Professional Tripods Inner Driver Axle Tripod CV Joint For Saab

Professional Tripods Inner Driver Axle Tripod CV Joint For Saab

Model NO.:
42246012288
Price:
USD 1.20-4.50 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
200000 pieces / Month
Country of Origin:
NINGBO , SHANGHAI etc.
Quantity:
  • Place of Origin:CN;ZHE
  • Material:20Cr , GCR15
  • Size:OEM Standard Size
  • Car Make:Saab
  • OE NO.:42246012288
  • Brand Name:HOHAN
  • Model Number:42246012288
  • Warranty:3
  • Type:Inner C.V.Joint
  • Product Name:Tripod CV Joint
  • Certificate:ISO9001
  • Hardness:HRC56-62
  • Depth of carburizing:0.8-1.2mm
  • Test methods:hardness test/spline measurement check
  • Car Model:Saab 9-3 900 1985 - 2003
  • Warehouse management:First in, First out
  • SORT:More than 500 different models
  • MOQ:100pcs
Product Description
Product name
Professional Tripods Inner Driver Axle Tripod CV Joint For Saab
Material
20Cr , GCR15
Car Make
1999-2003 Saab 9-3
1985-1998 Saab 900
1987-1997 Saab 9000
Warranty
3 years
Certification
ISO9001
Fitting Position
Inner cv joint
OE NO.
42246012288
Application
Auto
Port
Ningbo/Shanghai

Structure of Tripod Joint

Spider; Tripod spider transfers the engine power at various angles.
Ball case; Ball case(Spherical roller) being assembled into housing make stroke actions at various angles inside housing track as wheel rolls.
Needle rollers; Needle rollers assembled into ball case smoothes spider movement.
Ring; Ring being assembled into spider groove holds surrounding parts.

Retainer; Retainer being assembled onto spider holds parts in position.

About Tripod Joint

Tripod Joint is used at the inboard end of car driveshafts, it enables power transmission even in case of angle shifting. Tripod Joint has needle bearing / barrel-shaped rollers mounted on a three-legged spider / three-pointed yoke, instead of balls bearings. These fit into a cup with three matching grooves, attached to the differential. The rollers are mounted at 120-degrees to one another and slide back and forth in tracks in an outer “tulip” housing.
This three-legged spider with tripod has only limited operating angles, but is able to plunge in and out with a longer distance as the suspension moves. A typical Tripod joint has up to 50 mm of plunge travel, and 26 degrees of angular articulation.
