24 Teeth Auto Transmission Systems Spider Assembly Slide Joint Tripod CV Joint 43410-0W210 for TOYOTA MAZDA
24 Teeth Auto Transmission Systems Spider Assembly Slide Joint Tripod CV Joint 43410-0W210 for TOYOTA MAZDA
24 Teeth Auto Transmission Systems Spider Assembly Slide Joint Tripod CV Joint 43410-0W210 for TOYOTA MAZDA
24 Teeth Auto Transmission Systems Spider Assembly Slide Joint Tripod CV Joint 43410-0W210 for TOYOTA MAZDA
24 Teeth Auto Transmission Systems Spider Assembly Slide Joint Tripod CV Joint 43410-0W210 for TOYOTA MAZDA
24 Teeth Auto Transmission Systems Spider Assembly Slide Joint Tripod CV Joint 43410-0W210 for TOYOTA MAZDA
24 Teeth Auto Transmission Systems Spider Assembly Slide Joint Tripod CV Joint 43410-0W210 for TOYOTA MAZDA
24 Teeth Auto Transmission Systems Spider Assembly Slide Joint Tripod CV Joint 43410-0W210 for TOYOTA MAZDA
24 Teeth Auto Transmission Systems Spider Assembly Slide Joint Tripod CV Joint 43410-0W210 for TOYOTA MAZDA

24 Teeth Auto Transmission Systems Spider Assembly Slide Joint Tripod CV Joint 43410-0W210 for TOYOTA MAZDA

Model NO.
HK90105
Price:
USD 3.90-4.50 / pieces
Delivery:
FOB
Minimum order quantity:
200 pieces
Supply Ability:
200000 pieces / Month
Country of Origin:
NINGBO , SHANGHAI etc.
Quantity:
  • Place of Origin:CN;ZHE
  • Material:20Cr , GCR15,
  • Size:OEM Standard Size
  • Car Make:Toyota/ Mazda
  • OE NO.:43410-0W210
  • Brand Name:Neutral
  • Model Number:HK90105
  • Warranty:2
  • Type:Inner C.V.Joint
  • Hardness:HRC56-62
  • depth of carburizing:0.8-1.2mm
  • Test methods:hardness test/spline measurement check
  • Certificate:TS16949
  • Packing:Neutral packing or as request
  • Warehouse management:First in, First out
  • Accepted OEM:Yes
  • Customized service:Yes
  • Lead time:7-20 days
Product Description

24 Teeth Auto Transmission Systems Spider Assembly Slide Joint Tripod CV Joint 43410-0W210 for TOYOTA MAZDA

Type
Tripod Joint
Material
20Cr , GCR15
Color
As Standard
Application
Inner CV Joint
Certification
TS16949
Warranty
2 years
OE Number
43410-0W210 ,2T143W007
1501261
39101AV315;
MR580450;
8R0407271B;
31603450566

Car Make
compatible with
Toyota
MITSUBISHI
MAZDA
AUDI
BMW
Teeth
24Teeth
Bearing size
ø41.45*14
Sort
More than 1500 different items
MOQ
100 Pieces

Specifications

1. More than 1500 different items
2 .Niche market is USA and European market
3. Serve some of OE factories
4. 2 Years quality guarantee
5. 100% Inspection before shipment

About Tripod Joint

Tripod Joint is used at the inboard end of car driveshafts, it enables power transmission even in case of angle shifting. Tripod Joint has needle bearing / barrel-shaped rollers mounted on a three-legged spider / three-pointed yoke, instead of balls bearings. These fit into a cup with three matching grooves, attached to the differential. The rollers are mounted at 120-degrees to one another and slide back and forth in tracks in an outer"tulip"housing.
This three-legged spider with tripod has only limited operating angles, but is able to plunge in and out with a longer distance as the suspension moves. A typical Tripod joint has up to 50 mm of plunge travel, and 26 degrees of angular articulation.

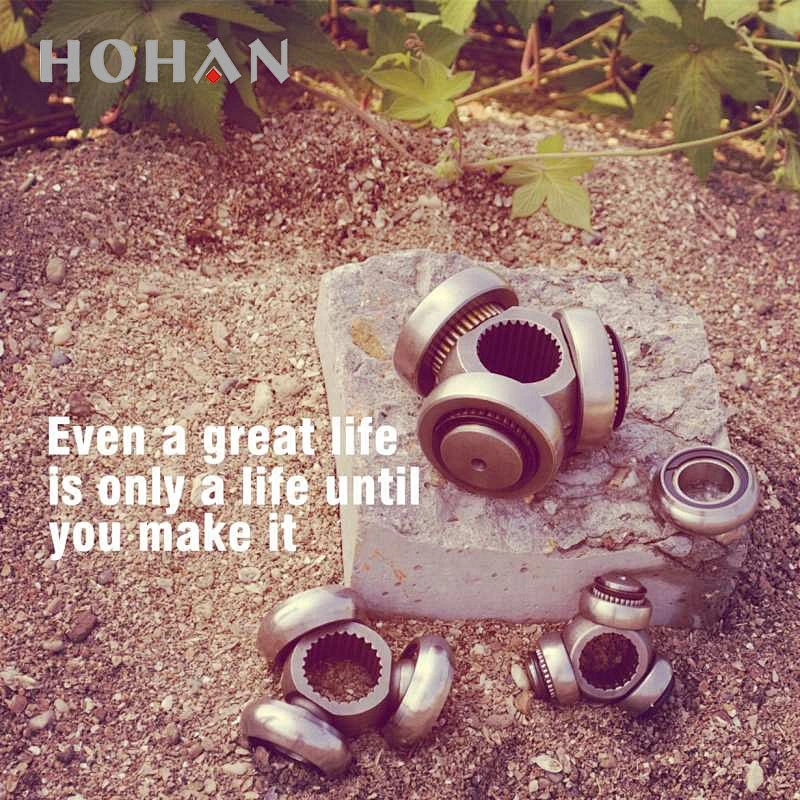

Detailed Images

Spider: Tripod spider transfers the engine power at various angles.
Ball case: Ball case(Spherical roller) being assembled into housing make stroke actions at various angles inside housing track as wheel rolls.
Needle rollers: Needle rollers assembled into ball case smoothes spider movement.
Ring: Ring being assembled into spider groove holds surrounding parts.
Retainer: Retainer being assembled onto spider holds parts in position.

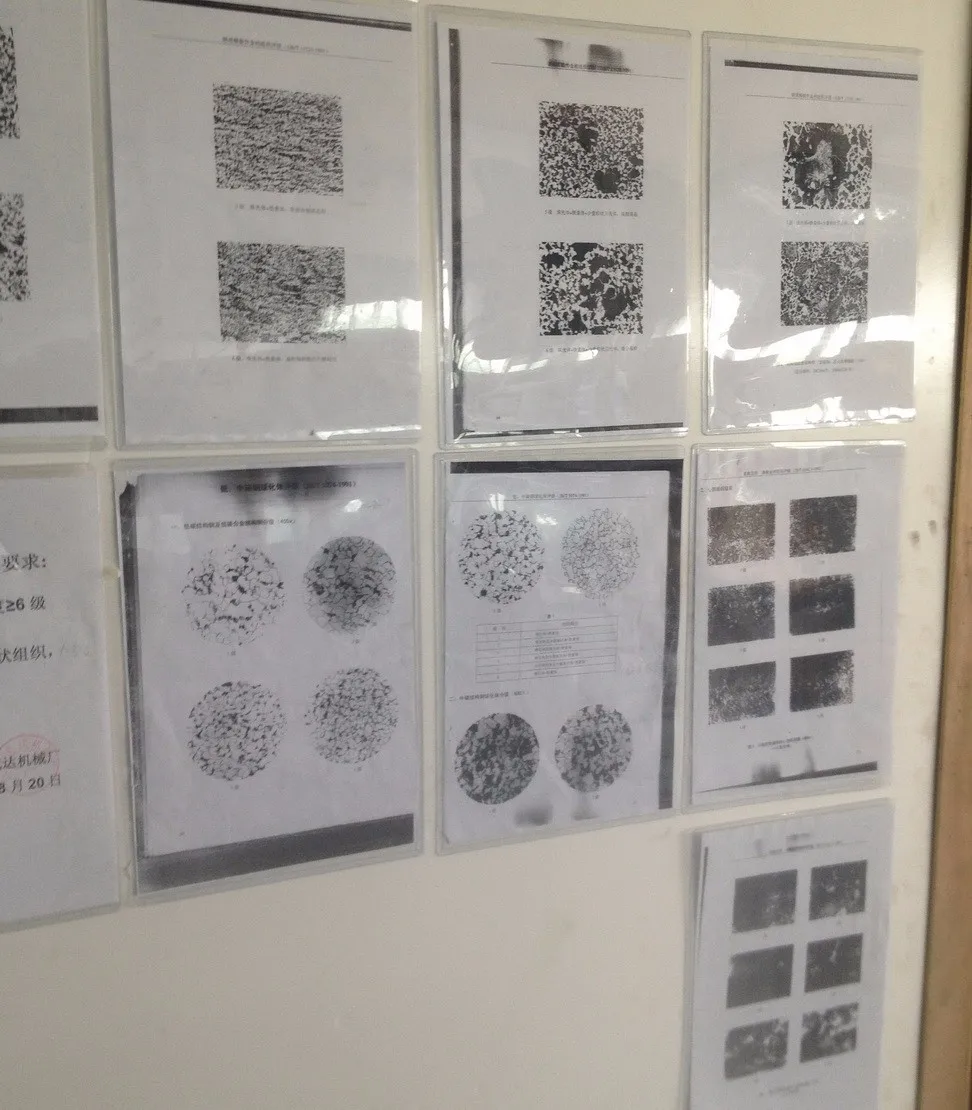

Professional Testing

Other Products

Inner CV Joint and Kits


ABS Speed Sensor


Window Regulator


Our Company

Hohan Auto Parts Co., Ltd. is a professional auto parts and accessories manufacturer, supplier and exporter. Hohan aims to provide worldwide customers with a wide range of best quality products with most competitive prices. In order to achieve this goal, Hohan has established strict quality control, inspection, best management and good supply system.To ensure the quality of our products, all our factories produce auto parts strictly to IS9001/TS16949 quality certification.

Packing & Delivery
Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
