- Car Fitment:Toyota
- Model:COROLLA
- Year:2007-2016
- Place of Origin:CN;ZHE
- Material:20Cr , GCR15
- Size:OEM Standard Size
- Car Make:COROLLA
- OE NO.:TO-09
- Brand Name:HOHAN
- Model Number:TO-09
- Warranty:2
- Type:Tripod joint
- Product Name:Tripod CV Joint
- Certificate:ISO9001
- Hardness:HRC56-62
- Depth of carburizing:0.8-1.2mm

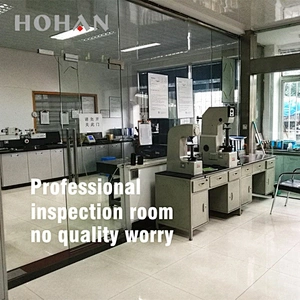

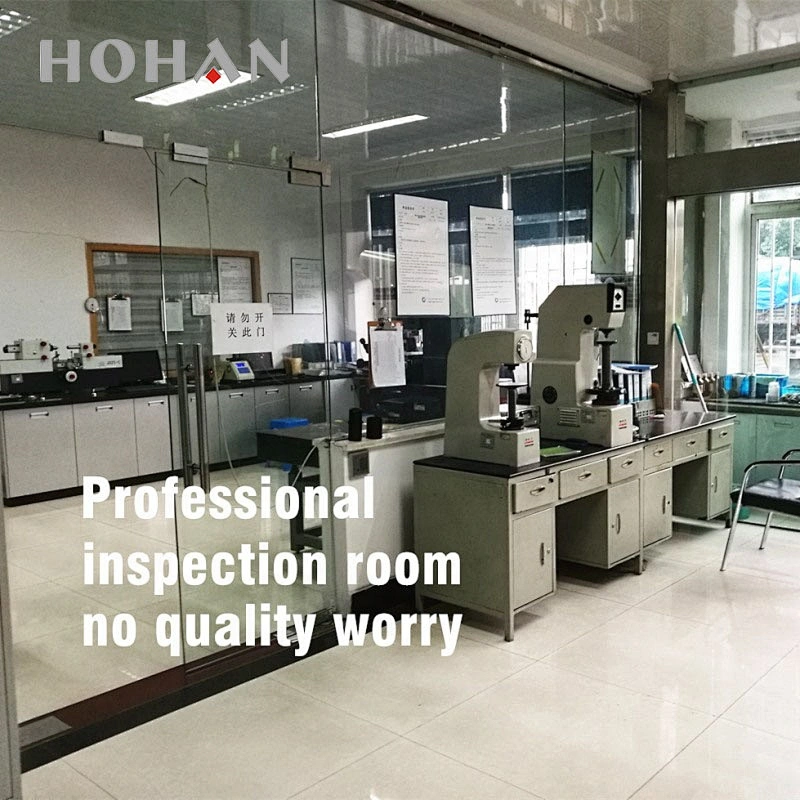

- Test methods:hardness test/spline measurement check
- Car Model:COROLLA
- Warehouse management:First in, First out
- SORT:More than 500 different models
- MOQ:100pcs

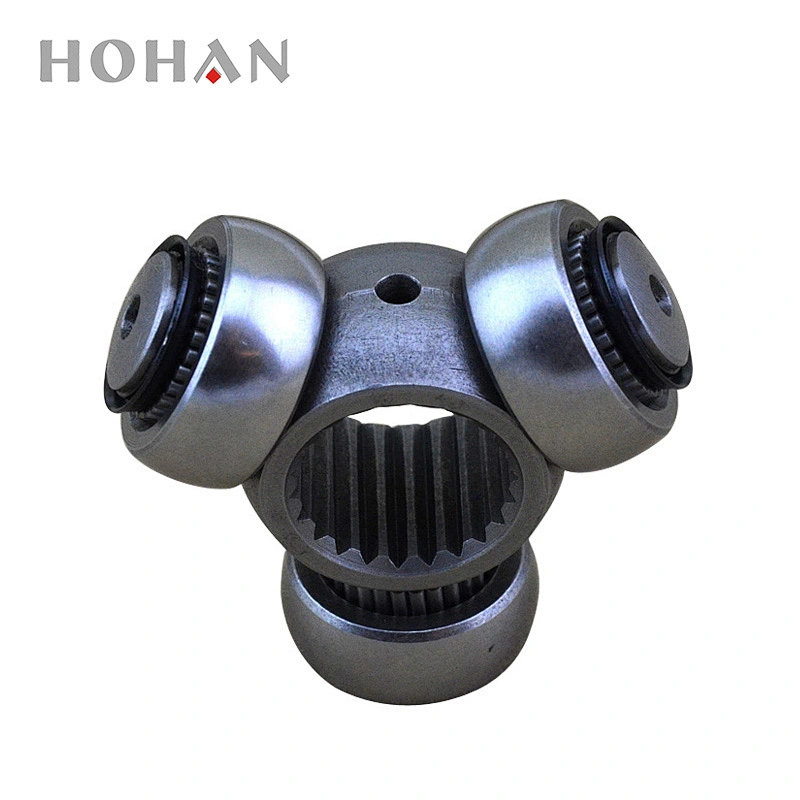

Structure of Tripod Joint
Spider; Tripod spider transfers the engine power at various angles.
Ball case; Ball case(Spherical roller) being assembled into housing make stroke actions at various angles inside housing track as wheel rolls.
Needle rollers; Needle rollers assembled into ball case smoothes spider movement.
Ring; Ring being assembled into spider groove holds surrounding parts.
Retainer; Retainer being assembled onto spider holds parts in position.
Tripod Joint is used at the inboard end of car driveshafts, it enables power transmission even in case of angle shifting. Tripod Joint has needle bearing / barrel-shaped rollers mounted on a three-legged spider / three-pointed yoke, instead of balls bearings. These fit into a cup with three matching grooves, attached to the differential. The rollers are mounted at 120-degrees to one another and slide back and forth in tracks in an outer"tulip"housing.
This three-legged spider with tripod has only limited operating angles, but is able to plunge in and out with a longer distance as the suspension moves. A typical Tripod joint has up to 50 mm of plunge travel, and 26 degrees of angular articulation.
Hohan Auto Parts Co., Ltd. is a professional auto parts and accessories manufacturer, supplier and exporter. Hohan aims to provide worldwide customers with a wide range of best quality products with most competitive prices. In order to achieve this goal, Hohan has established strict quality control, inspection, best management and good supply system.To ensure the quality of our products, all our factories produce auto parts strictly to IS9001/TS16949 quality certification.
Q1. What is your terms of packing?

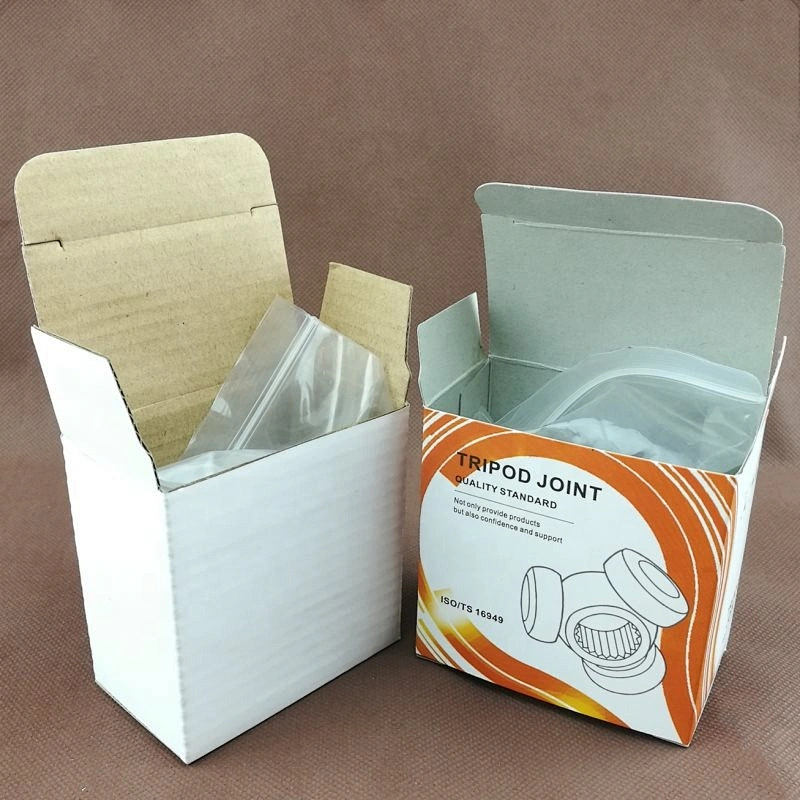

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
