Customize CV joint kits tripod crosses joint size bearing joint with quality guarantee

Model NO.:
Tripod joint
Price:
USD 4.30-4.30 / pieces
Delivery:
FOB
Minimum order quantity:
200 pieces
Supply Ability:
200000 pieces / Month
Country of Origin:
NINGBO , SHANGHAI etc.
Quantity:
  • Car Fitment:Toyota
  • Model:Corolla Combi
  • Year:1975-1980
  • Place of Origin:CN;ZHE
  • OE NO.:Customized
  • Size:32Teeth
  • Model Number:Tripod joint
  • Warranty:2
  • Brand Name:Neutral packing
  • Car Make:compatible with TOYOTA
  • Material:20Cr , GCR15
  • Type:Tripod
  • Product Name:Tripod
  • Bearing sizes:41.45 x 14
  • Dia of Small ball:40
  • Thickness:20.6
  • Material:20Cr , GCR15,
  • Hardness:HRC56-62
  • depth of carburizing:0.8-1.2mm
  • Test methods:hardness test/spline measurement check
  • Certificate:TS16949
Product Description
Product Name
Tripod
Material
20Cr, GCR15,
Warranty
3 years
Certification
ISO9001
Fitting Position
Inner cv joint
Teeth No.
32 Teeth
Bearing Size
41.45 x 14
Car Marker
As your request
Products Show

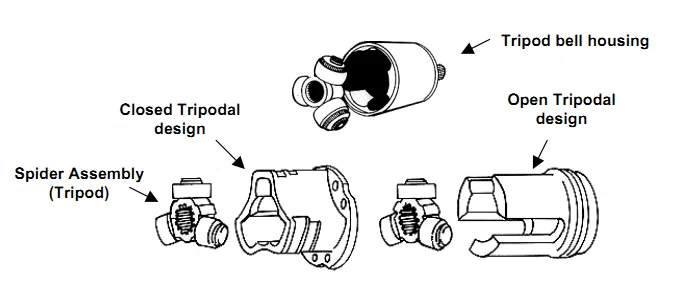

Structure of Tripod Joint

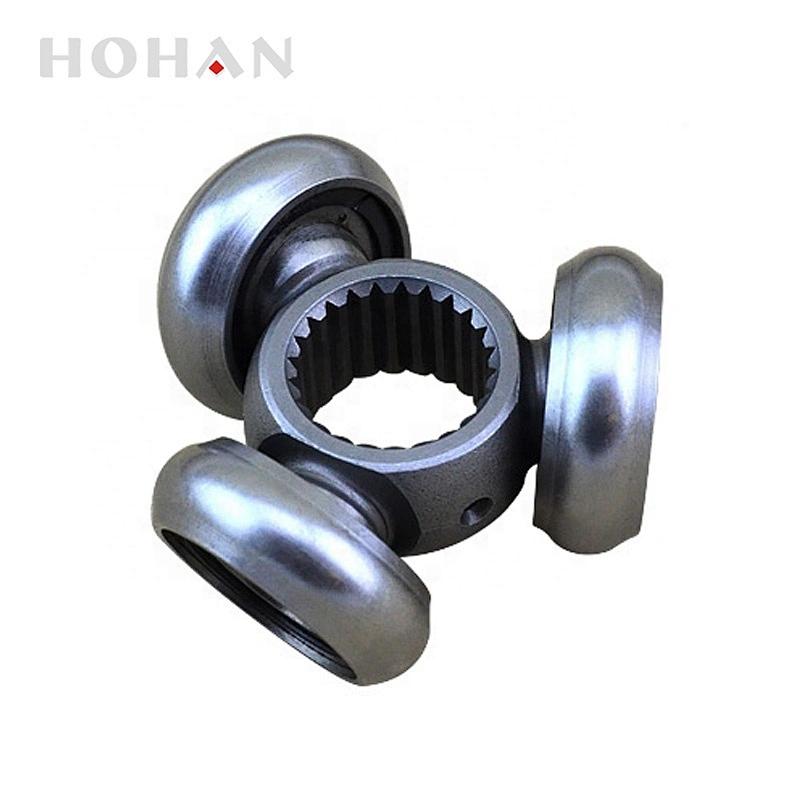

Spider; Tripod spider transfers the engine power at various angles.
Ball case; Ball case(Spherical roller) being assembled into housing make stroke actions at various angles inside housing track as wheel rolls.
Retainer; Retainer being assembled onto spider holds parts in position.

About Tripod joint

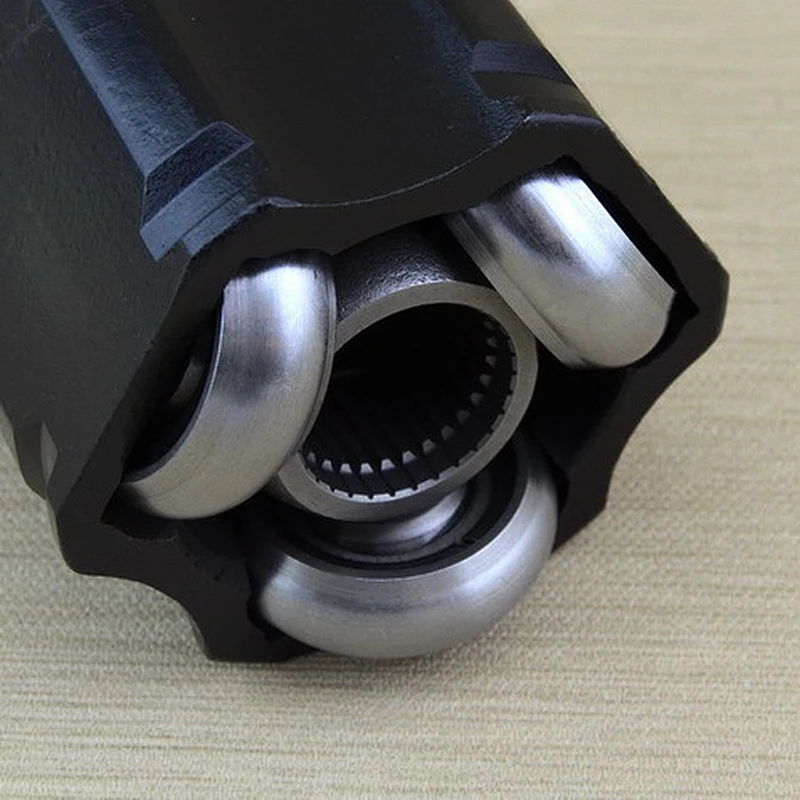

Tripod Joint is used at the inboard end of car driveshafts, it enables power transmission even in case of angle shifting. Tripod Joint has needle bearing / barrel-shaped rollers mounted on a three-legged spider / three-pointed yoke, instead of balls bearings. These fit into a cup with three matching grooves, attached to the differential. The rollers are mounted at 120-degrees to one another and slide back and forth in tracks in an outer “tulip” housing.
This three-legged spider with tripod has only limited operating angles, but is able to plunge in and out with a longer distance as the suspension moves. A typical Tripod joint has up to 50 mm of plunge travel, and 26 degrees of angular articulation.

Our Company

Workshop

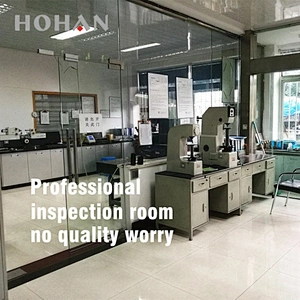

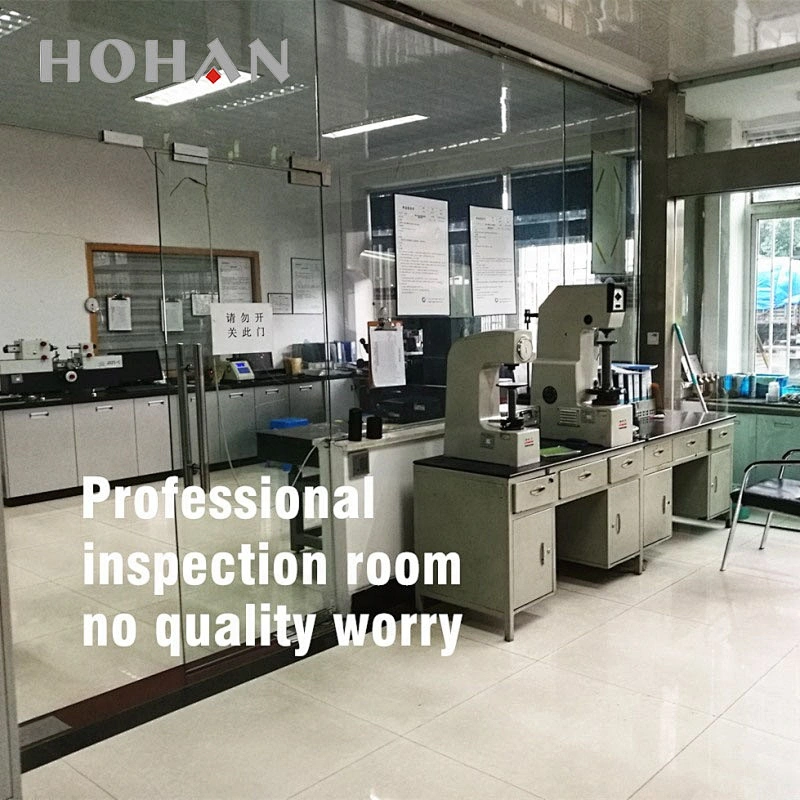

Inspection Room

Hohan Auto Parts Co., Ltd. is a professional cv joint and accessories manufacturer, supplier and exporter. Hohan aims to provide worldwide customers with a wide range of best quality products with most competitive prices. In order to achieve this goal, Hohan has established strict quality control, inspection, best management and good supply system.To ensure the quality of our products, all our factories produce auto parts strictly to IS9001/TS16949 quality certification.

Our Service

1. We will establish the customer’s profile and record the feedback,then solve the problem in time.
2. Sample order accepted.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

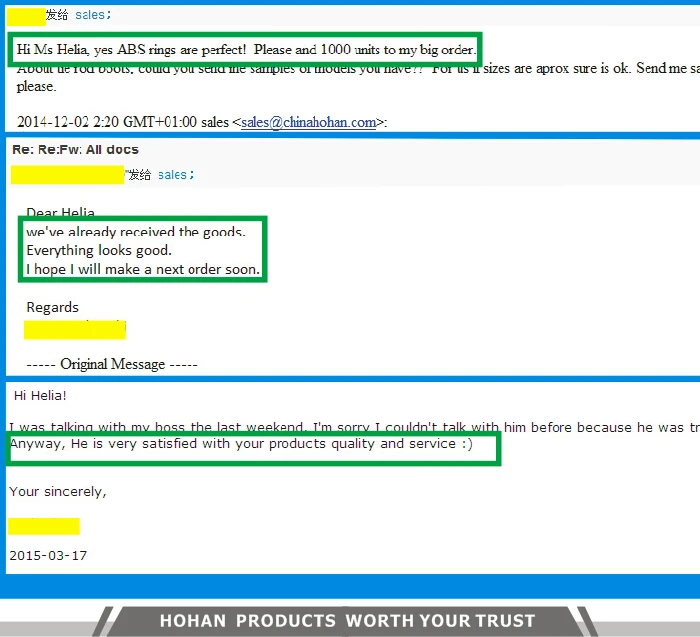

Feedback
FAQ

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.


Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

   2. We respect every customer as our friend and we sincerely do business and make friends with them,

no matter where they come from.
