- Place of Origin:CN;ZHE
- Brand Name:Neutral
- Model Number:Mitsubishi Chariot
- Warranty:2
- Product Name:auto tripod universal joint cv tripod joint
- Material:20Cr , GCR15,
- Hardness:HRC56-62
- depth of carburizing:0.8-1.2mm
- Test methods:hardness test/spline measurement check
- Certificate:TS16949
- Car make:Mitsubishi Chariot
- Teeth no.:30 Teeth
- SORT:More than 500
- warehousing management:first in first out
Structure of Tripod Joint

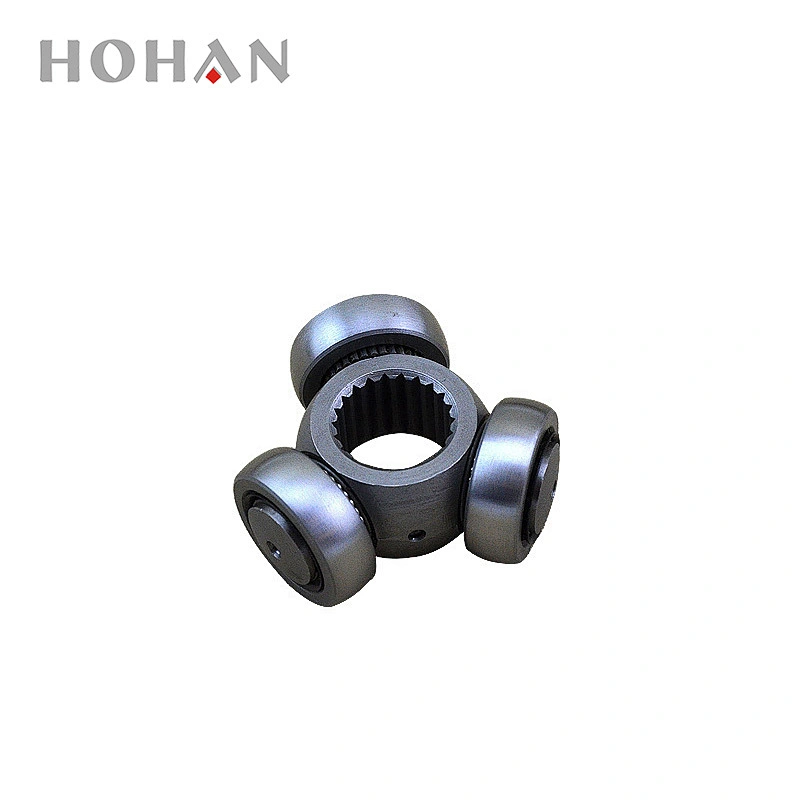

Spider; Tripod spider transfers the engine power at various angles.
Ball case; Ball case(Spherical roller) being assembled into housing make stroke actions at various angles inside housing track as wheel rolls.
Needle rollers; Needle rollers assembled into ball case smoothes spider movement.
Ring; Ring being assembled into spider groove holds surrounding parts.
Retainer; Retainer being assembled onto spider holds parts in position.

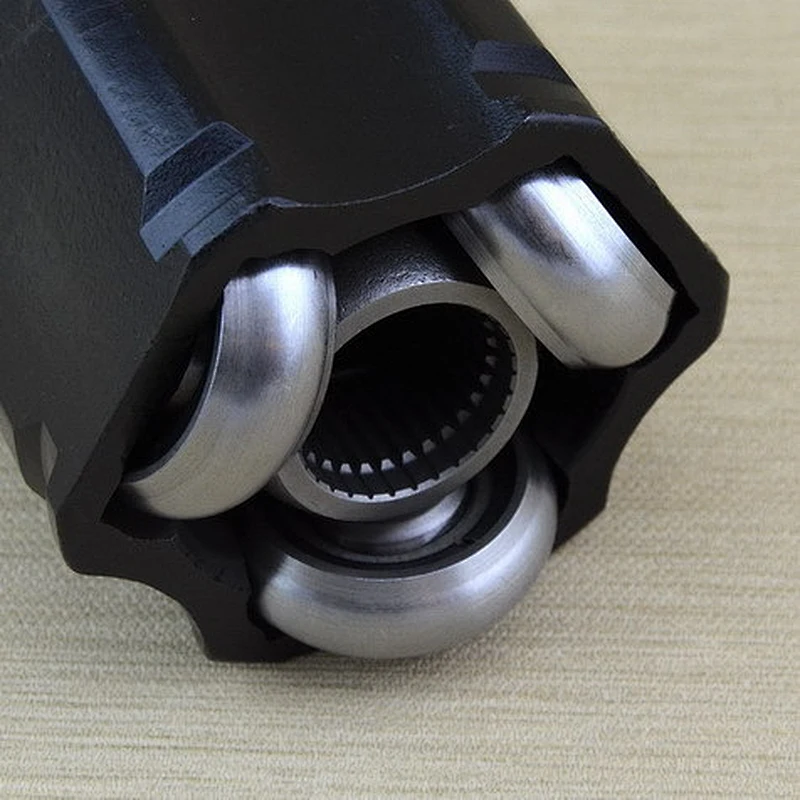

Tripod Joint is used at the inboard end of car driveshafts, it enables power transmission even in case of angle shifting. Tripod Joint has needle bearing / barrel-shaped rollers mounted on a three-legged spider / three-pointed yoke, instead of balls bearings. These fit into a cup with three matching grooves, attached to the differential. The rollers are mounted at 120-degrees to one another and slide back and forth in tracks in an outer “tulip” housing.
This three-legged spider with tripod has only limited operating angles, but is able to plunge in and out with a longer distance as the suspension moves. A typical Tripod joint has up to 50 mm of plunge travel, and 26 degrees of angular articulation.
Workshop
Inspection Room
Packing Details : Packing, neutral packing, 50pcs/carton
Delivery Details : 3-30 days after order.
Q: How long is your delivery time?
A: Generally it is 3-7days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
